Figure 6
The Figure 6 is the showcase for geomeTriD package to
validate the prediction of 3D structures.
Load Libraries
library(geomeTriD)
library(geomeTriD.documentation)
library(GenomicRanges)
library(GenomeInfoDb)
library(trackViewer)
library(InteractionSet)Load data and annotations
# original interaction map vs. spatialDistanceHeatmap
gr <- GRanges('chrX:1-20000000')
## load FLAMINGO results
FLAMINGO_chrX_5kb <- importFLAMINGO('https://github.com/wangjr03/FLAMINGO/raw/refs/heads/main/predictions/GM12878/chrX_5kb.txt')[[1]]
sdm_FLAMINGO <- spatialDistanceMatrix(subsetByOverlaps(FLAMINGO_chrX_5kb, gr), fill_NA = TRUE)
## load SuperRec results
extdata <- system.file('extdata', 'GSE63525', package = 'geomeTriD.documentation')
superRec_chrX_5kb <- importSuperRec(file.path(extdata, 'combined_30.chrX.SuperRec.txt.gz'),
## this file is not the real input file SuperRec
## the file is reduced size to construct the xyz object for this doc.
file.path(extdata, 'combined_30.chrX.SuperRec.input.subset.gz'),
binsize = 5000, chr='chrX')[[1]]
sdm_superRec<- spatialDistanceMatrix(subsetByOverlaps(superRec_chrX_5kb, gr), fill_NA = TRUE)
## load hic signal matrix
hic_sig <- importGInteractions('https://ftp.ncbi.nlm.nih.gov/geo/series/GSE63nnn/GSE63525/suppl/GSE63525%5FGM12878%5Fdilution%5Fcombined%5F30.hic',
format = 'hic', ranges = GRanges('X:1-20000000'),
resolution = 250000, out='GInteractions')
seqlevelsStyle(regions(hic_sig)) <- 'UCSC'
anchors <- anchorIds(hic_sig)
rg <- range(regions(hic_sig))
w <- unique(width(regions(hic_sig)))
gr <- slidingWindows(rg, width = w, step = w)[[1]]
df <- data.frame(i=anchors[[1]], j=anchors[[2]], score=log10(mcols(hic_sig)$score))
m <- xtabs(score ~ i + j, data = df)
m <- m+t(m)
## function to increase the contrasts
sigmoid_transform <- function(mat, center_value, steepness){
1 / (1 + exp(-steepness * (m - center_value)))
}
mat_sigmoid <- sigmoid_transform(m, center_value = mean(m, na.rm=TRUE), steepness = 5)
par("mfcol"=c(1, 2))

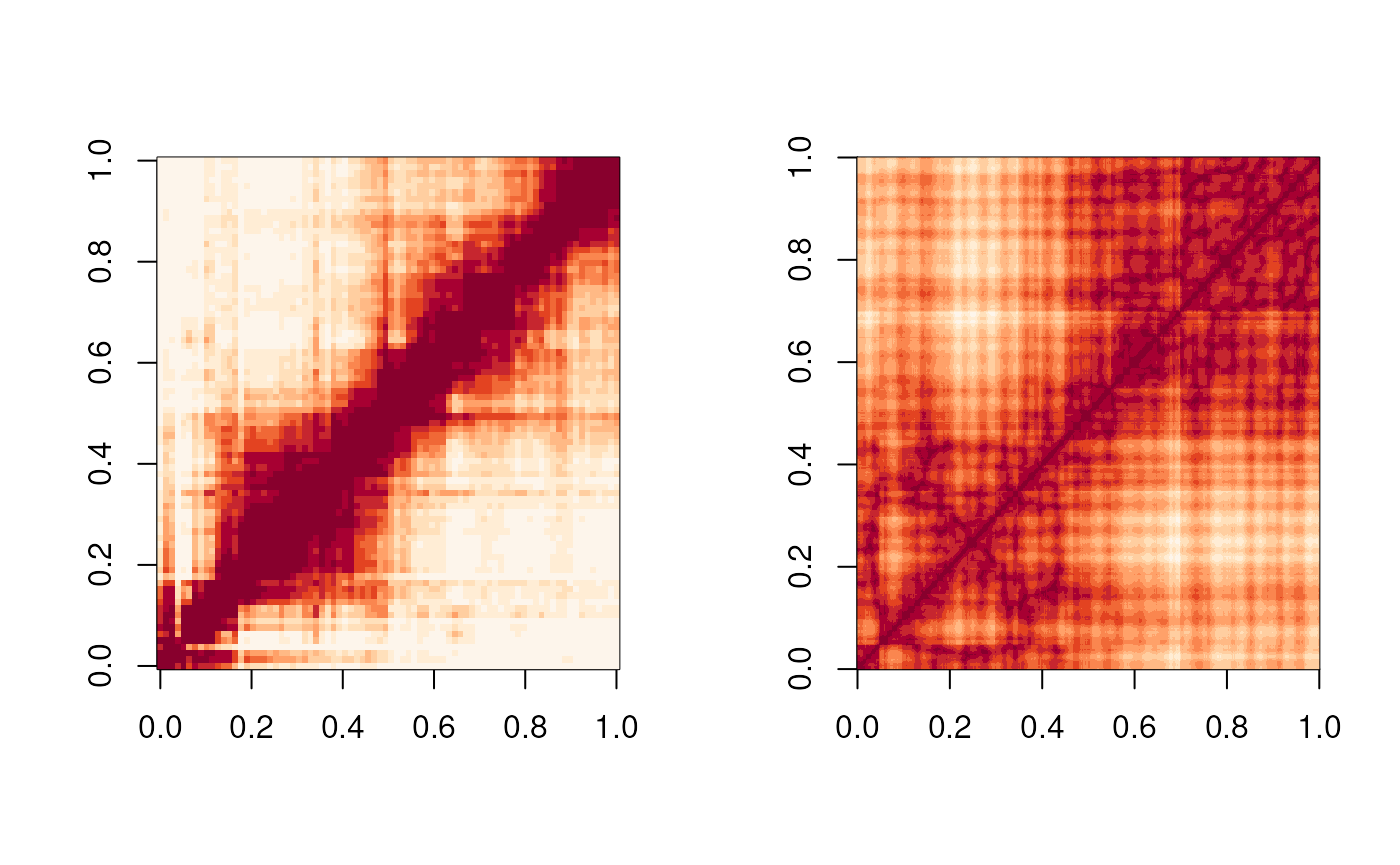

image(mat_sigmoid, useRaster=TRUE, col = rev(hcl.colors(n=12, "OrRd")))
image(sdm_FLAMINGO, useRaster = TRUE, col = hcl.colors(n=12, "OrRd"))
## check Distance-Contact correlation
safe_scale <- function(x) {
rng <- range(x, na.rm = TRUE)
if (diff(rng) == 0) return(x)
(x - rng[1]) / diff(rng)
}
sdm_80 <- function(x){
sdm_80 <- rowsum(x, rep(seq.int(80), each=50)[seq.int(nrow(x))])
sdm_80 <- rowsum(t(sdm_80), rep(seq.int(80), each=50)[seq.int(ncol(sdm_80))])
sdm_80 <- t(sdm_80)
sdm_scaled_safe <- safe_scale(sdm_80)
}
mat_scaled_safe <- safe_scale(m)
sdm_80_FLAMINGO <- sdm_80(sdm_FLAMINGO)
sdm_80_superRec <- sdm_80(sdm_superRec)
(cor_FLAMINGO <- cor.test(as.numeric(mat_scaled_safe),
as.numeric(1/sdm_80_FLAMINGO), method = 'spearman'))## Warning in cor.test.default(as.numeric(mat_scaled_safe),
## as.numeric(1/sdm_80_FLAMINGO), : Cannot compute exact p-value with ties##
## Spearman's rank correlation rho
##
## data: as.numeric(mat_scaled_safe) and as.numeric(1/sdm_80_FLAMINGO)
## S = 9.739e+09, p-value < 2.2e-16
## alternative hypothesis: true rho is not equal to 0
## sample estimates:
## rho
## 0.7770931
(cor_superRec <- cor.test(as.numeric(mat_scaled_safe),
as.numeric(1/sdm_80_superRec), method = 'spearman'))## Warning in cor.test.default(as.numeric(mat_scaled_safe),
## as.numeric(1/sdm_80_superRec), : Cannot compute exact p-value with ties##
## Spearman's rank correlation rho
##
## data: as.numeric(mat_scaled_safe) and as.numeric(1/sdm_80_superRec)
## S = 4.9934e+10, p-value < 2.2e-16
## alternative hypothesis: true rho is not equal to 0
## sample estimates:
## rho
## -0.1428887
## check Reconstruction Error
re <- function(d_model, hic_sig){
sum(hic_sig*(d_model - 1/hic_sig)^2, na.rm = TRUE)
}
re(sdm_80_FLAMINGO, mat_scaled_safe)## [1] 42149.23
re(sdm_80_superRec, mat_scaled_safe)## [1] 39530.13SessionInfo
